Mag Silver drills five m of 150 g/t Ag at Deer Trail

2023-08-03 06:58 ET - News Release

Mr. George Paspalas reports

MAG SILVER DRILLS THREE NEW SILVER, GOLD AND COPPER ZONES AT DEER TRAIL

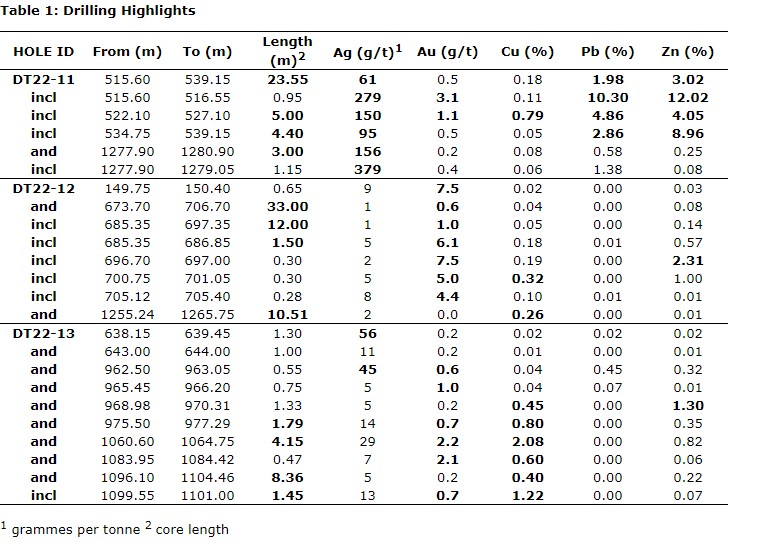

Mag Silver Corp. has provided results from the final three holes (3,817 metres of 10,413 m total) completed in surface-based phase 2 drilling on its Deer Trail carbonate replacement deposit (CRD) project in central Utah, United States. The three widely separated (up to 2,100 m) holes reported here cut high-grade gold, copper-gold and silver-gold-copper-lead-zinc mineralization of distinctly different styles and relative metal abundances (see attached table). Combining these three new zones with the intervening Carissa zone discovery (see press release dated Jan. 17, 2023) adds four new mineralization stages and at least three new mineralization pathways (spokes) to the Deer Trail system, continuing to validate the hub-and-spoke thesis. The distinctly different mineralization styles of the separate zones are hallmark indicators of a significant, long-lived, multistage CRD, potentially sourced from a productive porphyry copper-molybdenum intrusive centre. The combined results provide strong support for phase 3 drilling, currently under way to seek that porphyry centre.

  • DT22-11: 400 m north of Carissa discovery cut a 23.5 m zone of multiple stacked semi-massive sulphide mantos, the best of which grades 150 grams per tonne silver, 1.1 g/t gold, 0.8 per cent copper, 4.9 per cent lead and 4.1 per cent Zinc over 5.0 m;
  • DT22-12: 800 m northwest of Carissa cut 33.0 m grading 0.6 g/t Gold encompassing four high-grade gold zones the best of which ran 6.1 g/t gold over 1.5 m;
  • DT22-13: 1.7 kilometres southeast of the Carissa cut six strong copper-gold bearing structures, the best of which graded 2.2 g/t gold and 2.1 per cent copper over 4.2 m.

"So far, every hole we've drilled within a 1.5 km by three km corridor has hit varying styles of gold, copper and silver-lead-zinc mineralization within a thick package of intensely altered reactive carbonate rocks. These are all hallmark features of a large skarn/CRD system and combine to point towards Deer Trail Mountain, where we are currently drilling, as the likely source," said George Paspalas, Mag's president and chief executive officer. "With the Juanicipio mine now in commercial production and quickly ramping up; these continued exploration successes and ongoing drill programs should mean an exciting balance of 2023 and 2024 for Mag and its shareholders."

Individual hole highlights

  • DT22-11 -- Carissita Manto discovery: Hole 11 was drilled as a 400 to 800 m northerly offset of the Carissa discovery (see press release dated Jan. 17, 2023) and cut a 23.55 m zone containing three high-grade semi-massive sulphide mantos (see attached table). This is the thickest manto-style mineralization intercept drilled by Mag to date and is clearly separate from those previously known. Importantly, these mantos were cut at relatively shallow depth (approximately 525 m down hole) within an interpreted upthrown block that brought prospective reactive carbonate host rocks closer to surface in the direction of the inferred source area beneath Deer Trail Mountain. Additionally, a three m thick zone of silver-mineralized skarn grading 156 g/t was intercepted at the contact with the felsic intrusive cut in all deep holes.
  • DT22-12 -- 33 m gold zone: Hole 12 was drilled 800 m to the north of Carissa and under a similar topographic depression. It cut 33 m of weak manto alteration averaging 0.6 g/t gold that encompasses at least four narrow high-grade gold-bearing structures, the best of which ran 6.1 g/t gold over 1.5 m (see attached table). The overall zone appears to line up with a similar zone intercepted about 175 m to the southeast in DT20-01. It also cut 10.5 m of 0.26 per cent copper skarn just above the contact with the felsic intrusive cut in all deep holes.
  • DT22-13 -- multiple gold-copper zones: Hole 13 targeted the intersection of the Cottonwood Creek and Tushar faults and a significant coincident magnetic anomaly. It cut multiple structurally controlled copper-gold zones within a thick package of intensely altered carbonate dominant host rocks (see attached table) on the south side of the Cottonwood Creek fault. The best intercept is a 4.25 m wide (core length) structure grading 29 g/t silver, 2.2 g/t gold and 2.1 per cent Cu starting at 1,060.60 m downhole. Calcite veining and brecciated calcite showing strong red fluorescence under short-wave ultraviolet light occur throughout the hole, including within the mineralized intercepts. This is indicative of fugitive calcite, the "exhaust of the sulphide replacement mineralization process.
  • Summary: The results from these three holes have at least five significant implications and further support the company's belief that Deer Trail shows the key features of a major CRD/Skarn system.

  1. The distinctive metal assemblages present in all Mag-drilled holes support Mag's thesis that Deer Trail contains a large, multistage mineral system.
  2. The high copper values in hole 13, combined with previously released Cu-rich intercepts, may indicate that the source intrusion being sought in phase 3 drilling is a copper-rich.
  3. The interpreted upthrown block cut in the Carissa-Carissita zone brought prospective reactive and mineralized carbonate host rocks closer to the surface in the direction of the inferred source area beneath Deer Trail Mountain.
  4. Significant mineralization continues south of the Cottonwood Creek fault, expanding known mineralization to a three km by 1.5 km area that remains open in all directions.
  5. Numerous historical polymetallic showings and small mines are hosted in favourable carbonate rocks that crop out within Mag's extensive ground holdings farther south of the Cottonwood Creek fault indicting the system remains open in that direction. Hole 13 confirms that there is significant thickness to these rocks south of the Cottonwood.

Systematic propertywide exploration

Mag is built on systematic science-based exploration, big picture thinking and applying cutting-edge technology to understanding the processes active in given structural and lithologic environments to concentrate mineralization into large, high-grade deposits. Once Mag consolidated the Deer Trail properties, regional mapping, sampling, hyperspectral and geophysical programs were run to identify the source of the extensive mineralization and alteration known throughout the property. Modern concepts and techniques have been combined with decades of historic surface exploration into an integrated district-scale geological, geochemical, and geophysical dataset. Numerous high-priority targets have been developed and include the Deer Trail Mountain and Mt. Brigham porphyry targets; follow-up drilling on the best holes drilled to date (c.f. the Carissa and new Carissita Mantos of this release); and several other CRD targets throughout the property.

Phase 3 drilling

Mag has started phase 3 drilling of up to three holes targeting porphyry hub targets interpreted to underlie Deer Trail Mountain and Mt. Brigham where the source of the manto, skarn and epithermal mineralization and extensive alteration that characterize the project area is interpreted to lie.

About Deer Trail

The silver-rich Deer Trail carbonate replacement deposit project in Piute county, Utah, includes both patented and unpatented claims (approximately 7,250 Ha) in the historic Deer Trail mine and the adjoining Alunite Ridge area. The property lies directly on the Tushar strand of the Wasatch-Tushar fault, the major 100 km wide structural zone separating the Great basin from the Colorado Plateau. Farther north, this same fault system hosts the Tintic and Bingham Canyon CRD-skarn-porphyry districts. Age dates from all three systems fall around 28 million to 35 million annum, suggesting metallogenic affinity.

Mag has consolidated the Deer Trail properties for the first time since the early 1980s, allowing application of an integrated district-scale exploration approach based on the CRD through skarn to porphyry copper-molybdenum continuum of mineralization styles shown by many related systems worldwide. This model suggests that the high-grade silver, gold, lead, zinc and copper CRD sulphides of the Deer Trail mine are linked by kilometres of continuous mineralization to a porphyry copper-molybdenum centre lying to the west under Deer Trail Mountain or Mt. Brigham. The system's plumbing framework was outlined through detailed core relogging and underground mapping, which were combined into a detailed 3-D model of potential bleeder structures connected to potentially larger deposits below the historic Deer Trail mine. The Deer Trail project team is led by Dr. Lex Lambeck an AIPG certified professional geologist with over 15 years of relevant experience in CRD exploration.

Quality assurance and control: The samples (half core) are shipped directly in security-sealed bags to ALS- Laboratories preparation facilities in Elko, Nev., United States (certification International Organization for Standardization/International Electrotechnical Commission 17025:2017). Samples shipped also include intermittent standards and blanks. Pulp samples are subsequently shipped to ALS-Chemex Laboratories in North Vancouver, Canada, for analysis. The remaining half core is placed back into the core boxes and is stored on site with the rest of the drill hole core in a secured core storage facility.

Qualified persons: Dr. Peter Megaw, PhD, CPG, and Lyle Hansen, MSc, PGeo, have acted as the qualified persons as defined in National Instrument 43-101 for this disclosure and supervised the preparation of the technical information in this release. Dr. Megaw has a PhD in geology and more than 40 years of relevant experience focused on silver and gold exploration in Mexico. He is a certified professional geologist (CPG 10227) by the American Institute of Professional Geologists and an Arizona registered geologist (ARG 21613). Dr. Megaw is not independent as he is chief exploration officer and a shareholder of Mag. Dr. Megaw is satisfied that the results are verified based on an inspection of the core and underground exposures, a review of the sampling procedures, the credentials of the professionals completing the work and the visual nature of the silver and base metal sulphides within a district where he is familiar with the style and continuity of mineralization. Mr. Hansen is a registered professional geologist with Engineers and Geoscientists BC (149624) and has more than 15 years experience in epithermal veins and CRD deposits. Mr. Hansen is not independent as he is geotechnical director of Mag.

About Mag Silver Corp.

Mag Silver is a growth-oriented Canadian exploration company focused on advancing high-grade, district-scale precious metals projects in the Americas. Mag is emerging as a top-tier primary silver mining company through its 44-per-cent joint venture interest in the 4,000-tonne-per-day Juanicipio mine, operated by Fresnillo PLC (56 per cent). The mine is located in the Fresnillo silver trend in Mexico, the world's premier silver mining camp, where in addition to underground mine production and processing of high-grade mineralized material, an expanded exploration program is in place targeting multiple highly prospective targets. Mag is also executing multiphase exploration programs at the Deer Trail 100-per-cent earn-in project in Utah and the 100-per-cent-owned Larder project, located in the historically prolific Abitibi region of Canada.
