Criteria

JORCCodeExplanation

Commentary

Sampling Techniques

• Nature and quality of sampling (e.g. cut channels, random chips, or specific specialied industry standard measurement tools appropriate to the minerals under investigation, such as downhole gamma sondes, or handheld XRF instruments, etc.) These examples should not be taken as limiting the broad meaning of sampling.

• Include reference to measures taken to ensure sample representivity and the appropriate calibration of any measurement tools or systems used.

• Aspects of the determination ofmineralisation that are Material to the Public Report.

In cases where ‘industry standard’ work has been done, this would be relatively simple (e.g. ‘reverse circulation drilling was used to obtain 1 m samples from which 3 kg was pulverised to produce a 30 g charge for fire assay’). In other cases, more explanation may be required, such as where there is coarse gold that has inherent sampling problems. Unusual commodities or mineralisation types (e.g. submarine nodules) may warrant disclosure of detailed information.

No drilling has been undertaken on Zuenoula PR-750

All soil samples collected on Zuenoula PR-750 have been analysed for gold by fire assay at Bureau Veritas laboratory in Abidjan, Côte d’Ivoire.

SOIL SAMPLING STAGES

• Stage 1: Initial, permit-wide, broad-spaced soil sampling on 1000m x 1000m grid

• Stage 2: Gold anomalous clusters and trends defined by multiple anomalous soil samples (+20ppb Au) are then infilled with soil samples collected on 400m x 400m grid

• Stage 3: Coherent gold soil anomalies are then infilled with soil samples collected on 200m x 200m grid

• Stage 4: Higher density 200m x 50m soil sampling to sharpen definition of gold soil anomalies

• Stage 5: Augering and trenching of coherent gold soil anomalies

• Stage 6: Aircore drill testing of gold soil and auger anomalies.

SOIL SAMPLING PROCEDURES

• MGA has contracted the experienced consulting group SEMS Exploration Services (SEMS) to conduct all soil sampling

• Up to four sampling crews may be active at any one time

• The MGA Exploration Manager was onsite at the start of the field program to instruct the sampling crew on the Standard Sampling Procedure required by MGA

• MGA provided SEMS Exploration Services with an Excel table listing the designated sample point locations using WGS-84 UTM zone 29N coordinates

• Each soil sample is collected from within 20 metres of the designated sample point, with the actual sample point then recorded

• At each sample point: 1) the organic rich soil is brushed away, 2) a 40cm deep hole dug and the sample collected by taking a channel-cut along the bottom 20cm of the hole, 3) 1000g of the minus 2mm sieved fraction of each sample is collected from the sample point, 4) gold is determined by fire assay (LDL 2ppb)

• Duplicate samples are collected every 20th sample, certified reference material (CRM) inserted every 20th sample, and blanks inserted every 20th sample.

• Samples are stored at the secure SEMS field compound in Zuénoula prior to transport to Bureau Veritas in Abidjan of gold analysis.

Drilling Techniques

• Drill type (e.g. core, reverse circulation, open-hole hammer, rotary air blast, auger, Bangka, sonic, etc.) and details (e.g. corediameter,tripleorstandard tube,depthofdiamond tails, face-sampling bit or other type, whether core is oriented and if so, by what method, etc).

• No drilling has been undertaken.

DrillSample Recovery

• Method of recording and assessing core and chip sample recoveries and results assessed.

• Measures taken to maximise sample recovery and ensure representative nature of the samples.

• Whether a relationship exists between sample recovery and grade,andwhether samplebias may have occurred due to preferential loss/gain of fine/coarsematerial.

• No drilling has been undertaken.

Logging

• Whether core and chip samples have been geologically and geotechnicallyloggedtolevel of detail to support appropriate Mineral Resource estimation, miningstudiesandmetallurgical studies.

• Whether loggingisqualitativeor quantitative in nature. Core (or costean, channel, etc.) photography.

• Thetotallengthandpercentage oftherelevantintersections logged.

• No drilling has been undertaken

• Soil samples are comprehensively logged for a range of parameters including colour, soil horizon, sample weight, slope, dominant grain size (clay, silt, sand), general topography, residual or transported, proximity to artisanal workings, other ground disturbances such as field plowing, and general land use (grassland, plantation, crop, etc.).

Sub-sampling Techniques and Sample Preparation

• Ifcore,whethercutorsawnand whether quarter, half or all core taken.

• Ifnon-core,whetherriffled,tube sampled, rotary split, etc. and whether sampled wet or dry.

• For all sample types, the nature, quality and appropriateness of the sample preparation technique.

• Quality control procedures adopted for all sub-sampling stagestomaximise representivity of samples.

• Measures taken to ensure that thesamplingisrepresentativeof the in-situ material collected, including, for instance, results for field duplicate/second-half sampling.

• Whethersample sizes are appropriate to the grain size of the material being sampled.

• No drilling has been undertaken

• No sub-sampling of the 1000g soil samples is undertaken prior to the sample arriving at Bureau Veritas laboratory

• At Bureau Veritas, the entire 1000g sample is pulped prior to the laboratory taking a 50g split for lead collection fire assay determination of gold concentration.

Quality of AssayData and Laboratory Tests

• The nature, quality and appropriateness of the assaying andlaboratoryproceduresused and whether the technique is considered partial or total.

• Forgeophysical tools, spectrometers, handheld XRF instruments,etc.,theparameters used in determining the analysis, including instrument make and model, reading times, calibrationfactorsapplied,and

theirderivation,etc.

• Nature of quality control procedures adopted (e.g. standards, blanks, duplicates, externallaboratorychecks)and whether acceptable levels of accuracy (i.e. lack of bias) and precision have been established.

• Bureau Veritas is an internationally accredited assay laboratory located in Abidjan, Cote d’Ivoire.

• Assay results for all samples presented in the announcement were determined by fire assay (Lab Code: FE450, LDL 2ppb), which is a total gold extraction method for analysis.

• The lower detection limit (LDL) of 2ppb is considered appropriate for greenfields, early stage, exploration soil sampling

• Fire assay gold is considered one of the most reliable assay techniques for gold analyses.

Verification ofSampling and Assaying

• The verification of significant intersections by either independent or alternative company personnel.

• Theuseoftwinnedholes.

• Documentationofprimarydata, data entry procedures, data verification, data storage (physical and electronic) protocols.

• Discussanyadjustmentstoassay data.

FIRE ASSAY ANALYSIS

• All samples have been analysed for gold by fire assay at Bureau Veritas laboratory in Abidjan, Cote d’Ivoire

• The 1000g -2mm sample collected in the field is analysed for gold by fire assay (Lab Code: FE450, LDL 2ppb)

• At the laboratory, the 1000g -2mm sample is dried and pulverised to 85% passing 75 microns.

• This sample pulp is then mixed with a combination of chemical reagents, which when heated to high temperatures results in the formation of a lead button and slag. The lead button that contains the precious metals (including gold) is cupelled at high temperature. The lead is adsorbed by the cupel leaving behind a bead that contains the precious metals.

• The bead is acid digested and analysed by AAS, with a lower detection limit of 2ppb Au

Locationof DataPoints

• Accuracy and qualityof surveys used to locate drillholes (collar and down-hole surveys), trenches, mine workings and other locations used in Mineral Resource estimation.

• Specification of the grid system used.

• Quality and adequacy of topographic control.

• A handheld GPS is used to locate the soil data positions, with a +/-5m vertical and horizontal accuracy

• Sample locations (UTM WGS-84 zone 29N) and sample descriptions are noted on a standard form in the field and entered on a computer of an evening

• GPS measurements of sample positions are sufficiently accurate for exploration targeting gold systems.

Data Spacingand Distribution

• Data spacing for reporting Exploration Results.

• Whether the data spacing and distribution is sufficient to establish the degree of geologicalandgradecontinuity appropriate for the Mineral Resource and Ore Reserve estimation procedure(s) and classifications applied.

• Whethersamplecompositing hasbeenapplied.

• An 1000m by 1000m offset grid pattern has been adopted for the entire project area, excluding areas of irrigated sugar cane and villages.

• Broad-spaced soil sampling (1000m by 1000m) and low level gold fire assay analysis (LDL 2ppb) is considered an effective technique for identifying and delimiting gold anomalous clusters and trends, which are then followed up with higher density sampling at 400m 400m, 200m x 200m, and in some areas 200m x 50m, as the next phases of sampling ahead of trenching, augering, and drill testing of coherent gold soil anomalies.

Orientation of data in relation to geologicalal structure

• Whether the orientation of sampling achieves unbiased sampling of possible structures and the extent to which this is known, considering the deposit type.

• If the relationship between the drilling orientation and the orientation of key mineralised structures is considered to have introduced a sampling bias, this should be assessed and reported if material.

• The sample location configuration has been deliberately planned to avoid directional bias.

Sample security

• The measures taken to ensure sample security.

• 1000g of -2mm sieved fraction of soil samples are collected in plastic bags, assigned individual sample numbers and transported to the secure SEMS compound in Zuénoula

• Samples have been analysed by fire assay at Bureau Veritas in Côte d’Ivoire and were personally transported to the laboratory by a senior member of the MetalsGrove Abidjan-based exploration team.

Auditsor Reviews

• The results of any audits or reviews of sampling techniques and data.

• The sampling and assay techniques adopted by MetalsGrove has been effectively used in the Vavoua-Kounahiri district, and more widely in Cte d’Ivoire, to define drill targets and it is considered an effective initial approach for defining gold anomalous lithogeochemical trends.

Criteria

JORCCodeExplanation

Commentary

Mineral Tenement and Land TenureStatus

• Type, reference name/number, location and ownership, including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings.

• The security of the tenure held at the time of reporting, along with any known impediments to obtaining a licence to operate in the area.

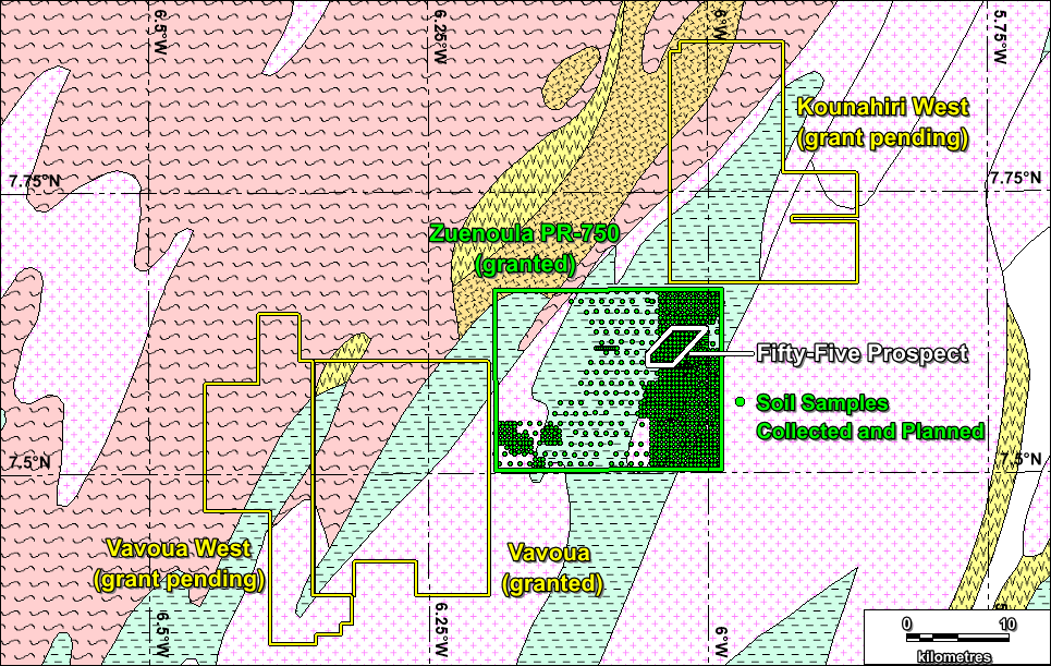

• Following the acquisition of the three Gemica joint venture (JV) permits PR-454 (granted), PR-1063 (application) and PR-1102 (application) in Côte d’Ivoire, MetalsGrove entered another JV with TSX-V listing company Stellar AfricaGold Inc. (Stellar) on PR-750 Zuénoula.

• Zuenoula PR-750 was granted on 17 April 2024 for an initial four-year period, renewable for two additional three-year periods.

• The Vavoua permit is located with Kounahiri West, Vavoua West and Zuenoula permits occupy a combined area of 1,315 km², strategically situated along the Abujar–Napie gold trend within the Oumé–Fetekro Birimian greenstone belt in central west of Côte d’Ivoire, approximately 100 km north of the Abujar gold mine and 160 km south of the Napie gold project.

Exploration Done by OtherParties.

• Acknowledgement and appraisal of exploration by other parties.

• MetalsGrove is not aware of any previous systematic exploration for gold having been conducted within either Zuenoula PR-750, Vavoua PR-454, Vavoua West PR-1102, or Kounahiri West PR-1063

Geology

• Deposit type, geological setting, and style of mineralisation.

• The Vavoua, Vavoua West, Kounahiri West and Zuénoula permitsare located in the central west of Côte d'Ivoire at the south edge of the West Africa craton. This region is the world’s largest Proterozoic gold-producing region, and Cte d’Ivoire contains 35% of the region’s Birimian Group rocks, which host multiple multi-million-ounce gold ore systems.

• The GEMICA JV permits and Stellar JV permit, together cover a combined area of 1,315 km², and are strategically situated along the Abujar–Napié gold trend within the Oumé–Fetekro Birimian greenstone belt, and are located approximately 100 km north of the Abujar gold mine and 160 km south of the Napié gold project.

Drillhole Information

• A summary of all information material to the understanding of the exploration results, including a tabulation of the following information for all Material drill holes:

• easting and northing of the drillhole collar elevation or RL (Reduced Level – elevation above sea level in metres) of the drillhole collar dip and azimuth of the hole

• down hole length and interception depth hole length.

• No drilling results are included in this release.

Data Aggregation Methods

• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (e.g., cutting of high grades) and cut-off grades are usually Material and should be stated.

• Where aggregate intercepts incorporate short lengths of high-grade results and longer lengths of low-grade results, the procedure used for such aggregation should be stated, and some typical examples of such aggregations should be shown in detail.

• The assumption used for any reporting of metal equivalent values should be clearly stated.

• No data aggregation methods were applied to the soil sampling data.

Relationship Between

Mineralisation Widthsand

Intercept Lengths

• If the geometry of mineralisation with respect to the drillhole angle is known, its nature should be reported.

• Not applicable.

Diagrams

• Appropriate maps and sections (with scales) and tabulations of intercepts should be included for any significant discovery being reported. These should include, but not be limited to, a plan view of drillhole collar locations and appropriate sectional views.

• See maps in the body of the report.

Balanced Reporting

• Where comprehensive reporting of all Exploration Results is not practicable, representative reporting of both low and high grades and/or widths should be practied, avoiding misleading reporting of Exploration Results.

• The soil assay data was interpreted by the MGA Exploration Manager who has more than 40 years of gold exploration experience. MGA assay results are also interpreted with reference to the surface geochemical expressions of more than 15 of the major gold discoveries in Cote d’Ivoire.

Other Substantive Exploration Data

• Other exploration data, if meaningful and material, should be reported, including (but not limited to): geological observations; geophysical survey results; geochemical survey results; bulk samples – size and method of treatment; metallurgical test results; bulk density, groundwater, geotechnical and rock characteristics; potential deleterious or contaminating substances.

• LiDAR or Laser imaging, Detection, and Ranging is a method for determining ranges by targeting an object or a surface with a laser and measuring the time for the reflected light to return to the receiver. LiDAR may operate in a fixed direction, or it may scan directions in a special combination of 3D scanning. LiDAR on a drone platform is being used at Zuenoula to make high-resolution (3cm resolution) topographical maps. For the survey, SEMS used a DJI Matrix 300 RTK drone mounted with a Zenmuse L@ LiDAR using a flight altitude of 150m AGL. The point cloud density was 94 points/m with a horizontal accuracy of 5cm and a vertical accuracy of 4cm. The sensor pulse rate was 240,000 laser points per second. Five base reference points were established linked to National Survey Beacons to continuously record x, y and z data for RTK positioning and correction of data and flight trajectory. Data processing was undertaken using an MSI Tomahawk workstation with an Intel Core i9-9900k processor using Dji Terra and Global Mapper Pro software. An optical camera of 20 Megapixel resolution was used to generate, after processing, orthoimages with an accuracy of 1 to 3cm.

• Orthophotography (orthophoto) are orthoimages geometrically corrected (orthorectified) to remove distortion from camera tilt and terrain relief. These images have a uniform scale, allowing for direct, accurate measurements of distances, areas, and angles, functioning as a map that represents true surface locations. The orthophotography was captured as part of the LiDAR survey using an optical camera of 20 Megapixel resolution.

FurtherWork

• The nature and scale of planned further work (e.g. tests for lateral extensions, or depth extensions, or large-scale step-out drilling).

• Diagrams clearly highlighting the areas of possible extensions, including the main geological interpretations and future drilling areas, provided this information is not commercially sensitive.

• Completion of 400m x 400m and 200m x 200m at several prospects.

• Plotting and interpreting the assay results for the 617 soil samples currently being assayed at Bureau Veritas.

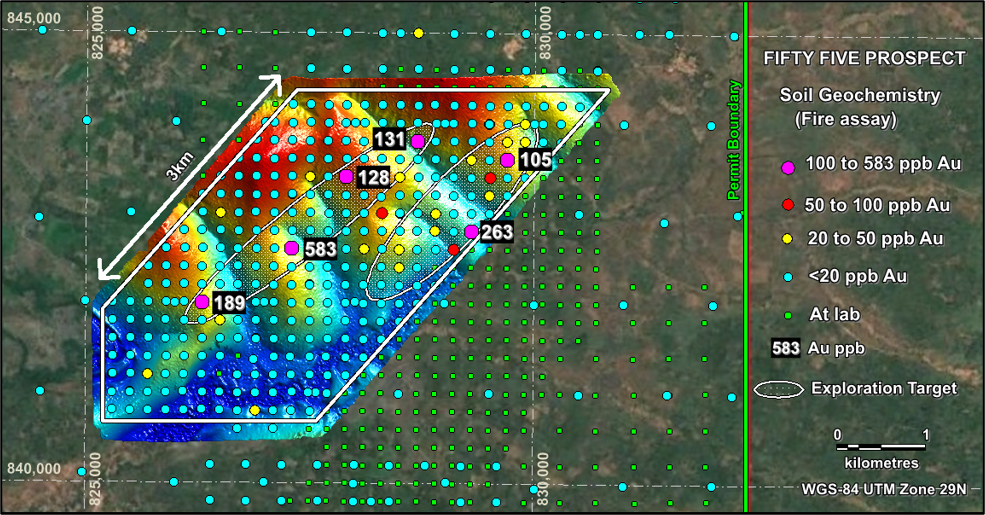

• Planning and scheduling 200m by 50m infill soil sampling at Fifty-Five Prospect.

• Searching +50ppb Au sites for quartz vein outcrop and/or float.

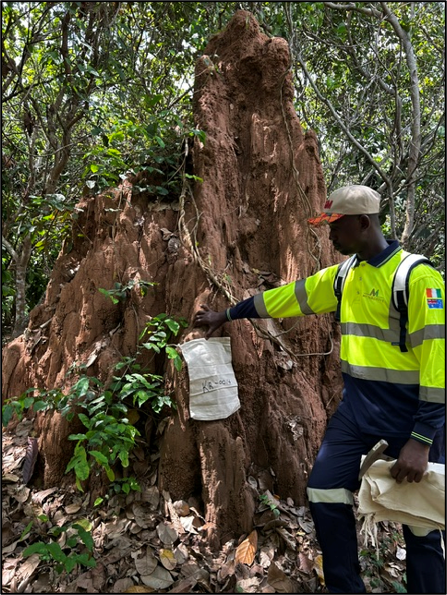

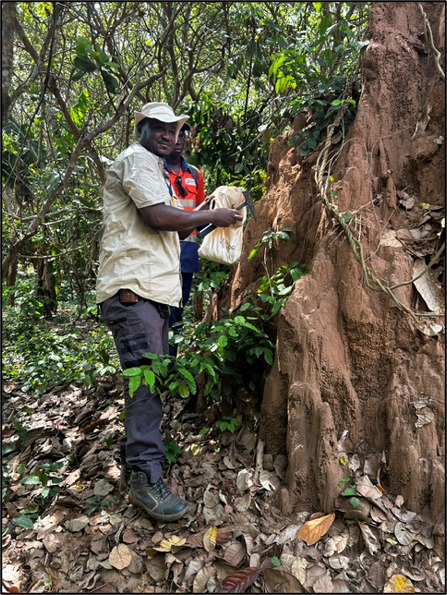

• Sampling termite mounds at gold anomalous soil sites.
