Minera Alamos talks Los Verdes, Potreritos projects

2024-05-03 10:49 ET - News Release

Mr. Darren Koningen reports

MINERA ALAMOS PROVIDES UPDATE ON COBRE 4H AND COPPER ASSETS

Minera Alamos Inc. has provided an update on its Cobre 4H Mexican subsidiary. In light of the limited information contained in recent Minera filings regarding its existing copper assets, the company believes it is useful to provide some additional information on the Los Verdes and Potreritos projects which were owned by Virgin Metals prior to the company being restructured as Minera Alamos. These projects remain key components of the company's plan to develop an independent copper entity in due course.

"While there have been obvious changes in costs since the Los Verdes PEA [preliminary economic assessment] report was published, this has been accompanied by recent strengthening of metal prices. The current environment provides an ideal opportunity to revisit the development of a potential copper production hub in southern Sonora, where there exist a number of known but undeveloped copper deposits," stated Darren Koningen, chief executive officer of Minera Alamos. "The metallurgical test work and engineering completed for the Los Verdes project in the past was extensive, and included mineral sorting studies that demonstrated a potential to upgrade the metal content of mined material to a level two-to-three-times greater than that used in previous technical reports. This unique opportunity allows our technical team to evaluate additional development paths with significant capex [capital expenditure] reductions, along with the ability to source material from other deposits that may be defined in the surrounding region."

The following sections contain highlights of the current National Instrument 43-101-compliant preliminary economic assessment for the Los Verdes project, as well as some discussion regarding additional upside potential provided by the nearby Potreritos acquisition. While there are no immediate plans to refile an updated PEA at this time, the company is presenting the information, along with the sensitivity analysis performed on the project economics, to provide some background in advance of a restart of engineering and exploration activities related to the projects.

Los Verdes PEA economic highlights

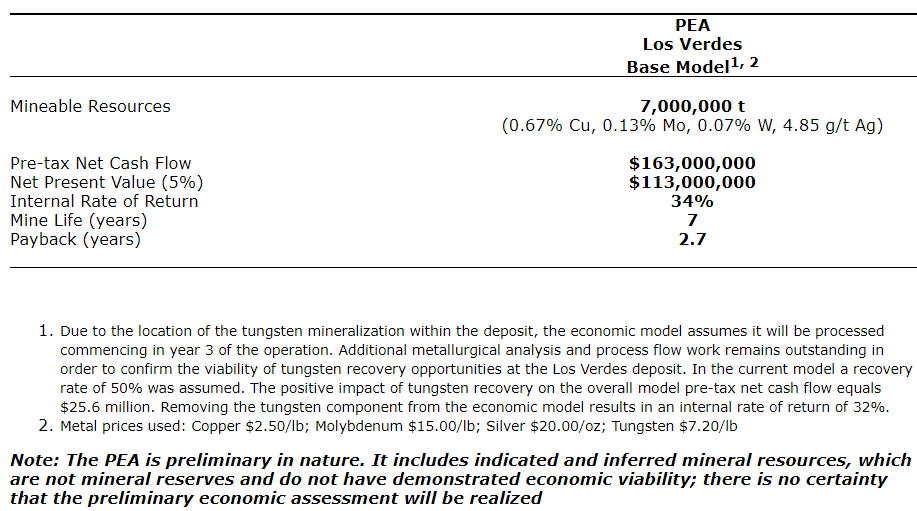

Highlights from the current PEA for the Los Verdes project are contained in the associated table. The PEA report for Los Verdes titled "Los Verdes Cu/Mo [copper/molybdenum] project -- preliminary economic assessment" was prepared by Golder Associates Ltd. for Virgin Metals Ltd., dated May, 2012, a copy of which is available under the company's profile on SEDAR+ (filed May 25, 2012).

In September, 2011, Minera Alamos (ex. Virgin Metals) also acquired the Potreritos project area, which is located approximately two kilometres (km) north of the Los Verdes property limits. Historic estimates for the Potreritos deposit include 1.4 million tonnes (Mt) of indicated resources (0.47 per cent Cu/0.12 per cent Mo) and 800,000 tonnes of inferred resources (0.22 per cent Cu/0.033 per cent Mo) (see Virgin Metals' news release dated Oct. 27, 2011). As the historic resource estimates are not NI 43-101-compliant, they have been excluded from the current Los Verdes PEA study. Management considers that, should the historic estimates be upgraded to current resources, the close proximity of the two projects would allow for the Potreritos resources to be incorporated into the mining plans for the Los Verdes deposit. As part of the PEA economic model sensitivity analysis, the impact of increased resources on the overall Los Verdes project are illustrated in the PEA economic highlights summary. The remainder of the sensitivity analysis results are summarized later in this news release.

Suaqui Verde acquisition

Further to the company's press release of April 26, 2024, specifically regarding the Suaqui Verde project, the following descriptive information is included regarding the transaction. The company's wholly owned subsidiary Cobre 4H has come to an agreement on merger terms with Minera Gold Copper (MGC) (as described in the release) that are subject to final paperwork required for closing in Mexico. MGC maintains certain rights, including rights to the Suaqui Verde project concessions. The company is aware that these rights have been the subject of various legal proceedings in the past, and that other parties have contested ownership of the project. The company has reviewed the information provided by MGC as it relates to the history and status of recent court judgements regarding MGC's rights to ownership of the Suaqui Verde concessions, and believes those judgements and MGC's rights to be valid and enforceable.

Los Verdes deposit PEA -- summary of technical data

The Los Verdes deposit PEA is based on a resource estimate completed by Golder Associates which contains a total resource (measured plus indicated) of 7.7 Mt -- 0.64 per cent copper, 0.12 per cent molybdenum, 0.07 per cent tungsten (W) and 4.75 g/t silver (Ag) (see Los Verdes resource estimate section for details). The study envisions the construction of a new mine and processing facility with an average annual production rate of approximately one Mt over a seven-year mine life. Highlights from the study are as shown in the associated table.

The initial capital cost estimate of $92-million included the construction of a stand-alone processing facility, mine prestripping, phase 1 of the tailings storage facilities and all necessary site infrastructure to bring the mine into production. A conservative 30 per cent contingency was included with the process facility estimate to account for requirements that are not detailed in the current study. The largest components of the sustaining capital estimate of $18-million is the construction of a tungsten processing facility in the second year of production, and a phase 2 expansion of the tailings facilities in year 4. In order to conserve capital, a decision was made to utilize contractors for all mining and crushing activities.

The average life-of-mine (LOM) unit operating costs for the project were estimated at $35/tonne. This figure is broken down as follows:

  • $1.70/tonne mining ($3.40/tonne ore with LOM stripping ratio of one/one);
  • 80 cents/tonne Virgin Metals mine services;
  • $18.70/tonne milling process costs (including $3/tonne crushing);
  • $2/tonne G&A (general and adminstrative) costs (including external contractors/consultants);
  • Approximately $10/tonne related to concentrate transportation, smelting and refining charges.

Based on metallurgical test work completed for the project, a conservative metal recovery of 85 per cent to concentrates was assumed for copper, molybdenum and silver. The current metallurgical flowsheet has been able to demonstrate that salable-quality concentrates can be produced for all of these components (note -- silver reports to copper concentrate). A preliminary allowance of 50 per cent for tungsten recovery has been included in the current study. Additional metallurgical work is required to determine whether the recovery of tungsten to a salable concentrate is a viable option for the Los Verdes deposit. Typical concentrate treatment terms and conditions have been utilized for all economic analyses.

A number of opportunities were identified in the PEA study to further enhance the Los Verdes project development plan and economics. These included:

  • Optimization studies aimed at improving overall metal recoveries;
  • Inclusion of used equipment for plant facilities;
  • Evaluation of alternatives for tailings containment facilities;
  • Discussions with purchasers of metal concentrates to maximize payable metal values;
  • Metallurgical work on oxide resources to determine if additional cash flows can be generated from material currently classified as waste.

Sensitivity analyses

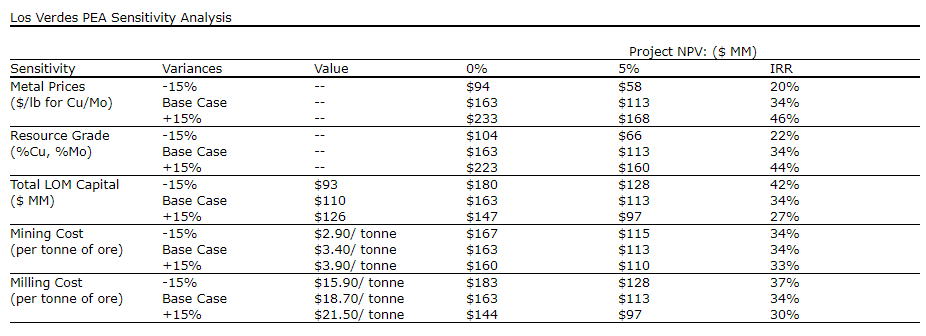

The results of a sensitivity analysis performed on the Lose Verdes deposit PEA base case economic model are shown in the table entitled "Los Verdes PEA sensitivity analysis." The sensitivity modelling demonstrates that the project economics are most impacted by variations in metal prices and mined grades, and least impacted by capital requirements and operating costs.

Los Verdes resource estimate

The Los Verdes deposit PEA is based on a resource estimate completed by Greg Greenough, PGeo, of Golder Associates, using block model estimation techniques.

Wireframe domains of supergene and oxide zones noted in the drill data were constructed and used as constraints throughout the resource estimation process. An unfolding technique was used to provide a more robust estimate which takes into account undulations and irregularities in the deposit shape. With drill spacing at approximately 50 metres, a block size of 15 m by 15 m by five m was chosen. Variogram analysis of Cu, Mo, W and Ag on the one m composites (in unfolded space) provided the variogram models used in ordinary kriged estimates, and also for determining the estimation search volumes. Validation of the kriged estimate included visual checks and global comparisons with nearest neighbour (declustered data) estimates. Reported resources are restricted to the supergene domain.

A summary of the current resources is shown in the table entitled "Los Verdes resource estimates."

Los Verdes

The Los Verdes property is a historic molybdenum producer, which was extensively drilled in the 1970s. Repetition and expansion of that drilling by Virgin in 2006 and 2007 resulted in the completion of a prefeasibility study in 2008. That prefeasibility study demonstrated, in considerable detail, a robust project based on molybdenum and copper recovery only; with upside existing in tungsten and silver recovery, as well as improvements in copper and molybdenum recoveries. The Los Verdes resource comprises a modest-sized, compact zone of molybdenum, copper and tungsten mineralization located at the crest of a steep ridge. The geometry of the deposit is ideal for low-cost, open-pit mining.

In September, 2011, the neighbouring Potreritos property was acquired and added to the project. Potreritos contains the workings of two historic mining operations (Buenavista and La Providencia) and is in close proximity to Virgin Metals Los Verdes project. During the 1960s and 1970s, the Buenavista and Tres Piedras (now La Providencia) deposits were operated by Minera Galaviz SA de CV, which constructed a flotation plant in the area to recover copper and molybdenum. The two deposits are located in close proximity to each other (approximately 200 m) and may be part of the same geological system. Historical copper and molybdenum concentrations in the rock from the deposits at Potreritos are similar to those expected at Los Verdes.

The Los Verdes/Potreritos project is made up of 17 titled exploration concessions, covering 6,629 hectares. It lies within what could be considered the southerly extension of the basin and range province of the southwestern United States, near the boundary with the Sierra Madre Occidental province.

PEA study development methodology

The general methodology utilized for the development of the PEA study was:

  • A complete metallurgical processing model was completed using the Metsim software package and utilizing the test work data completed primarily at SGS Lakefield Research.
  • Mass and energy flows were taken directly from the process model, and then utilized to identify and size all major process equipment items.
  • Capital costs were estimated for individual equipment then applied to account for additional requirements such as foundations, piping, electrical, buildings and engineering.
  • A conservative 30 per cent contingency was added to all process plant capital cost estimates to account for items that were not specifically identified at this stage of the study.
  • Conceptual capital costs were prepared for tailings containment facilities. A study is currently under way in conjunction with Golder Associates to better define the optimal tailings containment strategy and costs.
  • Infrastructure were developed based on a plant site location within approximately two kilometres of the mine site. Infrastructure requirements included road construction and upgrades, power lines, and site preparations. An allowance was made for the construction of a new road from the plant to the main highway in order to ensure that mine traffic bypasses the local town.
  • Owner's costs include allowances for permitting requirements, freight, first fill of consumables, spare parts and plant commissioning. Excluded from owner's costs are corporate overheads and working capital requirements.
  • Operating costs were developed based on estimated staffing levels, consumables (from test work and modelling), and expenditures required to support the mine, and its associated processing, maintenance and administrative activities. Power requirements were estimated based on equipment motor sizings and assuming a conservative delivered charge of 13 cents/kilowatt-hour (kWh).
  • An overall contingency of 20 per cent was applied to the operating cost totals (excluding labour) to account for additional cost items such as outside contractors, laboratory consumables, vehicle fuel requirements et cetera.
  • All mine operating activities are assumed to be the responsibility of a third party mine contractor. Contractor rates include drilling, blasting and transportation of the waste/ore. Costs for the company mine services group were prepared separately and included separately.
  • Crushing was assumed to be the responsibility of a third party contractor using portable crushing equipment (two-stage crushing circuit). Contractor rates include crushing, handling and transport of crushed ore to plant facilities.
  • A conceptual Whittle open-pit model was prepared in conjunction with Golder Associates using economic parameters from the current PEA study. Results from the modelling demonstrate that almost all of the current Los Verdes resource blocks (plus 95 per cent) are minable. Life-of-mine strip ratio is approximately 1.1 (waste) to 1.0 (ore). More detailed mine development plans will be prepared as part of future feasibility study efforts.

Potreritos deposit

The Potreritos project hosts the historic Buenavista mine and Provindencia mines. The pegmatitic bodies with higher-grade disseminated mineralization are located in the north-central portion of the property. The Buenavista zone is constituted by a 200 m by 250 m ovoid-shaped area with at least 50 m of depth, conformed by fine-grained granodiorite stock, traversed by numerous pegmatitic quartz K-feldspar dikes. Drilling has demonstrated the potential for this mineralized zone to extend at depth. Foliated masses of molybdenite, associated with black coloured acicular tourmaline, characterize its composition. Within the area, several outcrops of breccias pipe bodies (two km diameter), rich in tourmaline and quartz, have been located.

In addition to the mineralization already identified in the areas of historic mine workings, the geology of the Potreritos deposit is such that it allows for the existence of similar bodies in areas not yet explored. Exploration work completed in 2007/2008, in conjunction with the SGM (Servico Geologico Mexicano), has identified a number of other occurrences within the Potreritos claim area, with indications of copper/molybdenum mineralization:

  • A significant IP (induced polarization) anomaly in the south of the property (El Moro-Los Tajos area) corresponding to a zone of intense pyritization and surface geochemical samples that are anomalous in copper and molybdenum. A historic diamond drill hole completed in this area encountered a three-centimetre (cm)-long molybdenite crystal at a depth of 126 m.
  • An IP anomaly in the east of the property (Algarrobos area) coinciding with the presence of quartz-tourmaline breccias and tungsten anomalies such as those located at the Los Verdes deposit.
  • A fumarolic epithermal zone in the northwest of the property characterized by a strong anomaly with the presence of arsenic, tellurium and selenium. A historic borehole drilled in this zone intercepted an intrusive body which was highly fractured and altered, containing traces of copper and molybdenum below the volcanic rock. It is believed that the alteration found at surface in the volcanic rocks could be owed to this intrusion and at greater depths may form a mineralized copper-molybdenum deposit.

Mr. Koningen, PEng, Minera Alamos' chief executive officer, is the qualified person responsible for the technical content of this press release under National Instrument 43-101.

About Minera Alamos Inc.

Minera Alamos is a gold production and development company undergoing the operational start-up of its first gold mine that produced its first gold in October, 2021. The company has a portfolio of high-quality Mexican assets, including the 100-per-cent-owned Santana open-pit, heap-leach mine in Sonora that is currently going through its operational ramp-up. The 100-per-cent-owned Cerro de Oro oxide gold project in northern Zacatecas has considerable past drilling and metallurgical work completed and the proposed mining project is currently being guided through the permitting process by the company's permitting consultants. The La Fortuna open-pit gold project in Durango (100 per cent owned) has a positive, robust preliminary economic assessment completed, and the main federal permits are in place. Minera Alamos is built around its operating team that together brought three open-pit heap-leach gold mines into successful production in Mexico over the last 13 years.

The company's strategy is to develop very-low-capex assets while expanding the projects' resources and continuing to pursue complementary strategic acquisitions.
